With the rapid growth of electric two- and three-wheelers, shared mobility, and battery-swapping industries, the demand for high-power charging and discharging solutions continues to rise. In response to this trend, CHOGORI proudly launches the upgraded FC09 Series Floating Connector. The highlight of this upgrade is the significant increase in rated current from 40A to 60A, providing a solid and reliable foundation for higher-power application scenarios.

Superior Design, Enhanced Experience

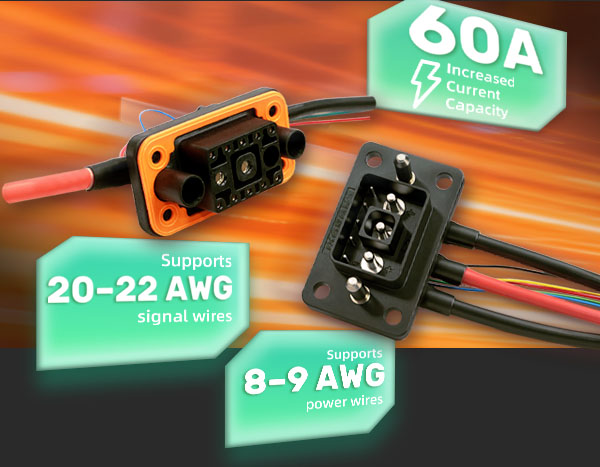

Increased Current Capacity: Supports 8–9 AWG power wires and 20–22 AWG signal wires. The 60A rated current meets more demanding electrical performance requirements, ensuring stable operation in high-power systems.

Floating Structure Design:

The unique floating male-end design offers excellent shock absorption and buffering, effectively compensating for mating tolerance and ensuring reliability and long service life in vibration-prone environments (mechanical life up to 5,000 cycles).

Convenient Bi-Directional Mating:

Supports insertion from both directions, allowing "plug-and-play" operation. This greatly simplifies use and improves efficiency, especially in high-frequency applications such as shared mobility and battery swapping.

All-Weather Adaptability: Operating temperature range from -40℃ to 105℃. IP rating reaches IPX7 on the battery side, with IPX6 (optional) on the vehicle side and IPX5 (optional) when mated, ensuring safe and reliable operation in rainy or humid environments.

Global Application Scenarios
The upgraded FC09 is suitable for ToC end-users in daily charging and discharging, as well as ToB enterprises engaged in shared and swapping operations. Beyond the Chinese domestic market, the FC09 upgrade is also expanding into India, East Asia, Southeast Asia, Africa, and South America, where the surging demand for electric mobility requires reliable connector solutions with both high-power capability and enhanced safety.
