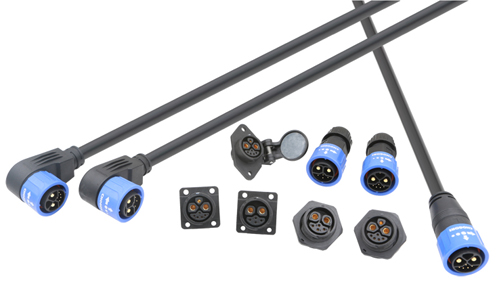

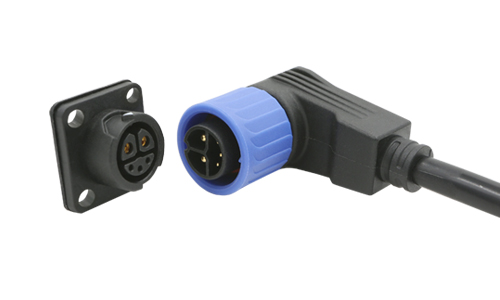

Coral 2+6 Pin 90° (15A+2A)

Applications: For charging & discharging use, cable to panel solution

Advantages
• Quick Lock
• Power & Signal Hybrid Combination
• IP67 Robust Overmolded Type
• ≥1000 Times Mating Cycles
• Stable Connection in Vibrating Environment
• Waterproof Protective Cap
• RoHS and Reach Compliant

SpecificationsRelated Products

Voltage  Rating:48V AC/60V  DC

Operating  Temperature-40°C to 85°C

Current  Rating15A+2A

IP  RatingIP67

Withstand  Voltage:500V AC

Mating  Cycle:1000 Times Min  (Without load)

Insulation Resistance20MΩ Min@500VDC

Wire  Gauge16AWG/1.31mm²  + 26AWG/0.120mm²
