Large 2+1+5 Pin (50A+5A)

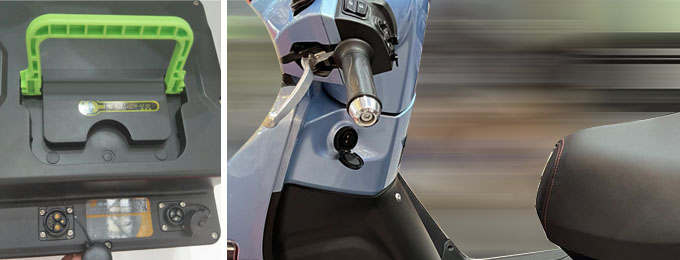

Applications: Charging & discharging application

Advantages
• Push-lock mechanism
• With audible click when locking engaged
• Panel mount solution with 90 degree cable out to reduce the overall height
• Lock nut with wings available to make disconnecting easier
• RoHS and REACH compliant

SpecificationsRelated Products

Mating Cycle:≥3,000 Cycles

Voltage Rating:80V DC

Operating  Temperature:-40°C to 105°C

Pullout Force<100N

Current Rating50A + 15A + 5A

IP RatingIP67 Mated

Wire ProcessingSolder

Withstand Voltage1,500V AC

Salt Spray:5% Nacl, 48H

Wire GaugePower 9AWG/ Max

                      Signal 1 Pin 16AWG/  Max

                      Signal 5 Pin 20AWG/  Max

Insulation Resistance>100MΩ at DC 500V

Flammability Rating
UL94V-HB (Plastic Material)/ Plug Side
UL94V-0 (Plastic Material)/ Panel Side
