| Mating Cycle: 100 Cycles | Voltage Rating: 690V | Operating Temperature: -40°C to 105°C |
| Wire Processing: Panel, Crimp ; Plug, Screw | Current Rating: 35A | IP Rating: IP67(Mated) |
| Insulation Resistance: 100MΩ at 500V DC | Withstand Voltage: 4,000V AC | Salt Spray: 5% NaCI, 48h |
Wire Gauge: 10AWG/ Max | Flammability Rating: UL94V-0 |
Products

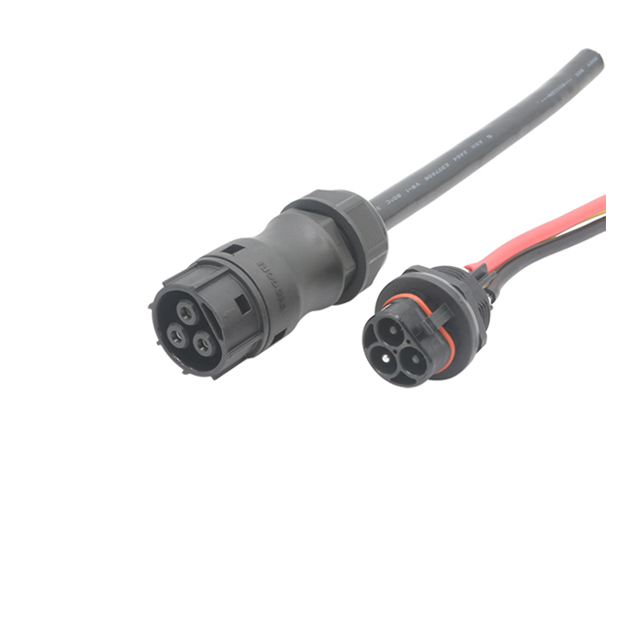

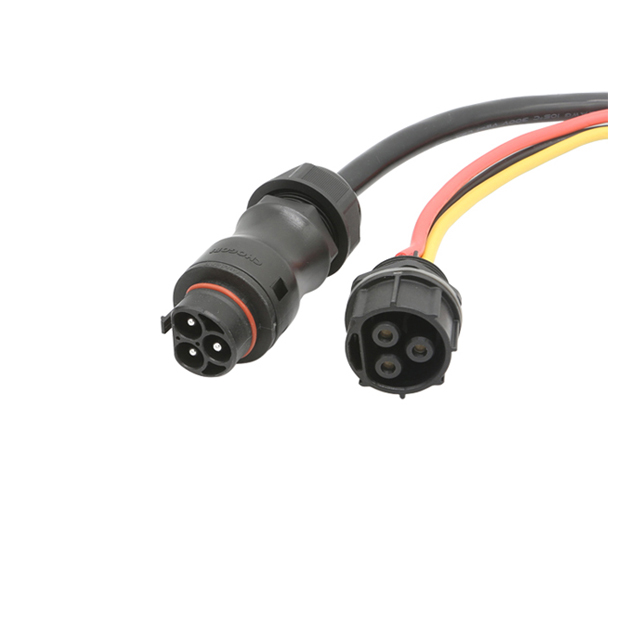

FAC01 3 Pin (35A)
Applications: Power Connector for Solar Inverter
Advantages
• Qucik lock with high mechanical strength
• Realiable connection with IP67 protection
• Male / Female variants available for both panel mount and plug configurations
• UL4128 & UL2238 Certified
• RoHS and REACH compliant
