Voltage Rating：48V AC/60V DC |
Operating Temperature：-40°C to 85°C |
|
Current Rating：15A+2A |
IP Rating：IP67 |
|
Withstand Voltage：500V AC |
Mating Cycle：1000 Times Min (Without load) |
|
Insulation Resistance：20MΩ Min@500VDC |
Wire Gauge：16AWG/1.31mm² + 26AWG/0.12mm² |
Background
When adopting existing electric two-wheeler connector solutions, users commonly face multiple pain points: cumbersome separate wiring for power and signal circuits, conflicts between high-current transmission and miniaturized space layout, loose connection issues under high-frequency vibration scenarios, insufficient waterproof and dustproof reliability in harsh environments such as outdoor and vehicle-mounted conditions, low installation efficiency, and high maintenance costs.

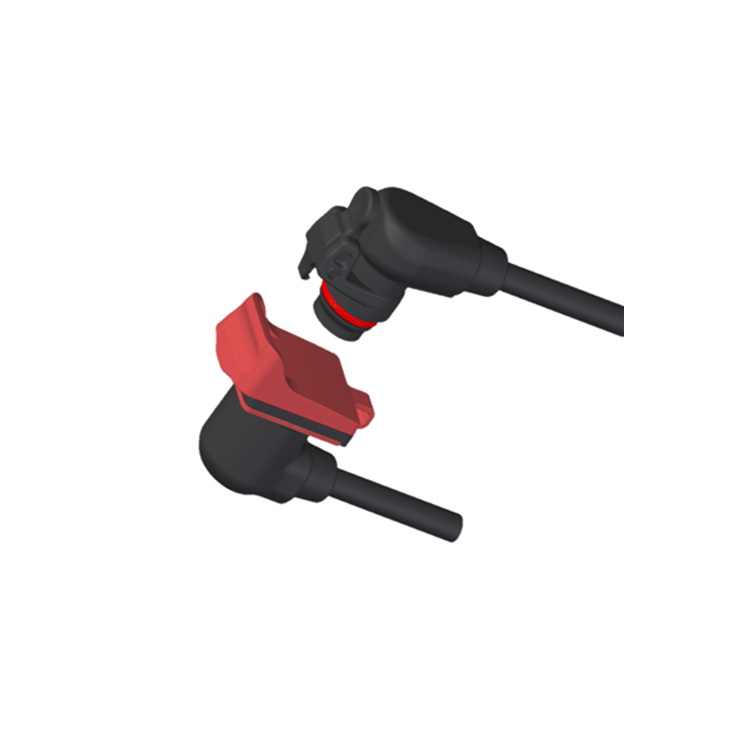

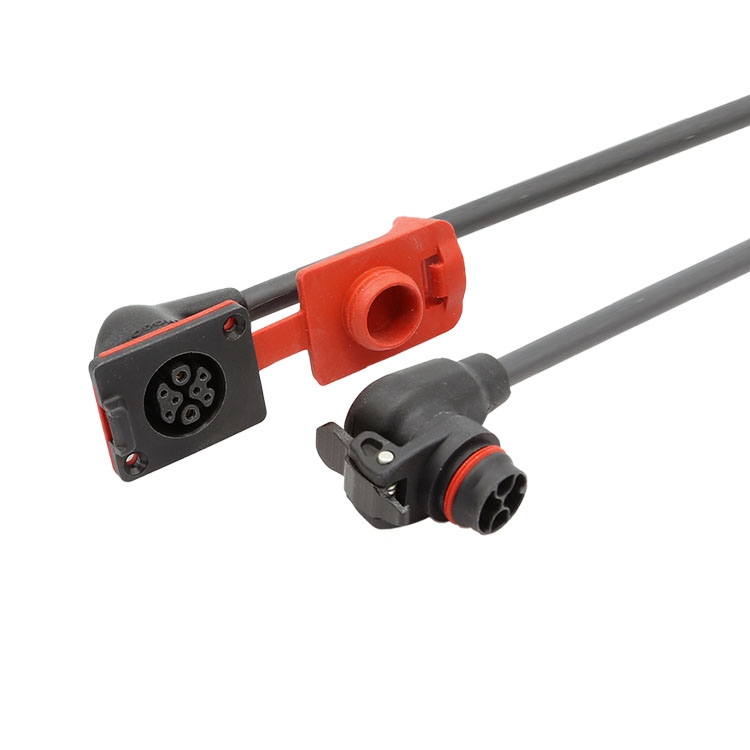

The Chogori Coral 2+6 electric two-wheeler connector features integrated 2+6 pin power & signal all-in-one design, space-saving 90° elbow structure, quick locking and anti-loosening mechanism, and IP67 high protection rating. It effectively addresses the pain points of traditional solutions: compact size perfectly adapts to miniaturized vehicles, high current capacity meets charging and discharging transmission demands, vibration resistance and anti-loosening performance suit riding vibration scenarios, high-level protection copes with harsh outdoor environments. The integrated design simplifies wiring, greatly improving the reliability and installation efficiency of end products.
Product Positioning
The Coral 2+6 electric motorcycle connector is a high-performance integrated electric motorcycle connection product specially designed by QH for electric motorcycle charging and discharging solutions. It features a 2+6 core power + signal integration, 90° elbow for space saving, quick locking, IP67 high protection, and anti-vibration and anti-disconnection. It addresses the core pain points of industry customers in electric motorcycle connection, such as "complicated power and signal line separation, large volume under high current, connection failure in vibration environment, insufficient protection in harsh environment, and low installation efficiency", providing a one-stop solution for high-reliability electrical connection.
Product Feature
1. 2+6 Core Power + Signal Integrated Solution
● Function: A single connector integrates 2-core high-current power circuit + 6-core signal circuit, replacing the traditional multiple discrete solutions.
● Advantages: Significantly reduces the number of wires, installation time and occupied space, and lowers the complexity of terminal product structure design.
● Customer Value: Replaces multiple discrete connectors, reduces the variety of materials and installation costs, lowers BOM and maintenance costs, and enhances the market competitiveness of the product.
2. Space-saving 90° Elbow Design
● Function: Utilizing a 90° right-angle elbow structure, it is suitable for compact installation scenarios within equipment interiors and on panels.
● Advantages: Perfectly resolves the issue of insufficient space for straight connectors, significantly enhancing the space utilization rate within the equipment.
● Customer Value: Facilitates the miniaturization and lightweight design of terminal devices, thereby enhancing the technological competitiveness of products.

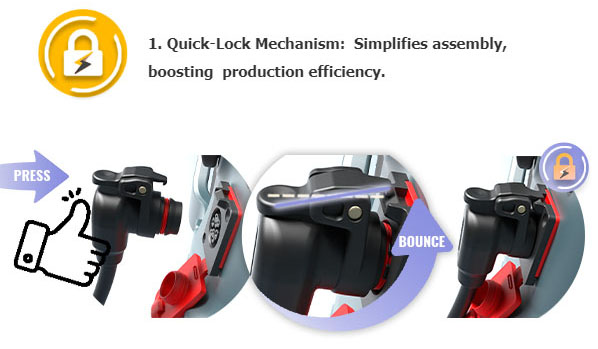

3. Quick-locking structure, easy to operate
● Function: Equipped with a quick-locking design, no tools are required and it can be plugged and locked with one hand.
● Advantages: Compared with traditional screw / snap-fit structures, the installation efficiency is increased by more than 50%, suitable for batch installation on production lines and on-site construction.
● Customer value: Significantly improves the installation efficiency on production lines and on-site construction, shortening the project delivery cycle.
4. IP67 High Protection, Coping with Harsh Environments

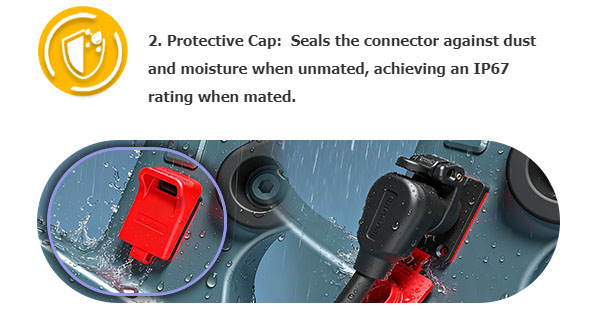

● Function: The entire series features an enhanced sealed structure, achieving an IP67 protection level, and is equipped with a waterproof cover that provides protection even when not mated.
● Advantages: It can handle outdoor rain, vehicle wading, dust and other harsh environments, with stable and long-lasting protection performance, reducing the risk of environmental faults.
● Customer Value: Multiple protection guarantees significantly lower the probability of connection failure, water ingress and other faults, reduce after-sales maintenance costs, and enhance the reputation of terminal products.
5. High Vibration Resistance Design for Stable Connection
● Function: Optimized locking and contact structure significantly enhances vibration resistance performance.
● Advantages: Prevents connection loosening and detachment risks in scenarios such as vehicle bumps and equipment vibrations.
● Customer Value: Zero failure in high-vibration environments, ensuring connection stability and improving product reliability.
6. Environmental Compliance and Full-Scene Adaptability
● Function: Materials comply with RoHS and REACH environmental requirements, and the operating temperature range covers -40°C to 85°C.
● Advantages: Meets global market compliance requirements and is suitable for various scenarios such as in-vehicle and outdoor use.
● Customer Value: One product fits multiple scenarios, reducing selection and inventory costs, and facilitating global market exports.
Application Scope
Electric bicycle / Electric-assisted vehicle (battery and charging)
