Mating Cycle: 3,000 Cycles |
Voltage Rating: 125V DC (Power) 72V DC (Signal) |
Operating Temperature: -40°C to 105°C |
|
Wire Processing: Solder |
Current Rating: 50A+5A |
IP Rating: IP67 mated; IP67 panel side |
|
Wire Gauge: Power 10AWG/Max, Signal 20AWG/Max |
Withstand Voltage: 1,000V AC |
Salt Spray: 5% Nacl, 48H |
|
|
Peak Current: 100MΩ at DC 500V |
Flammability Rating: UL94V-0 |
Products

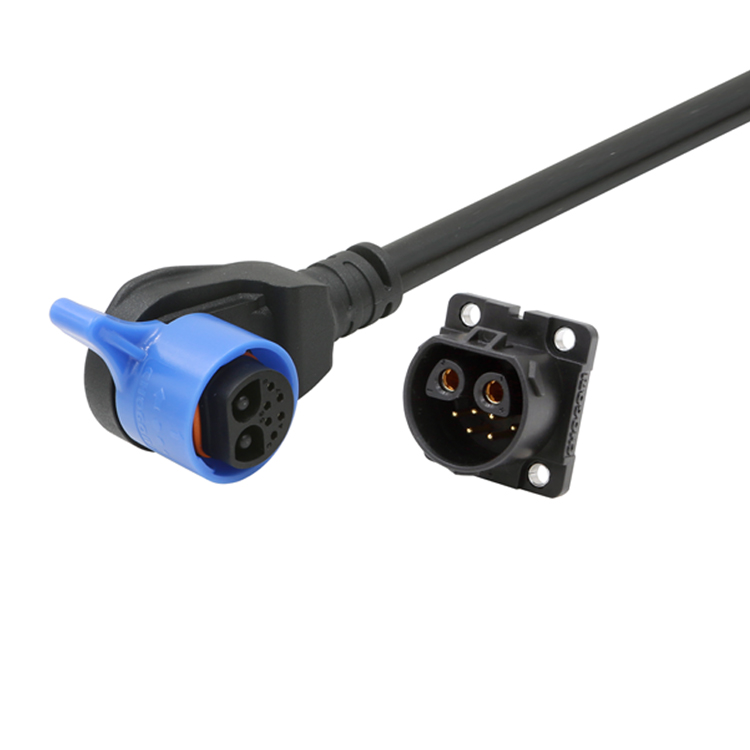

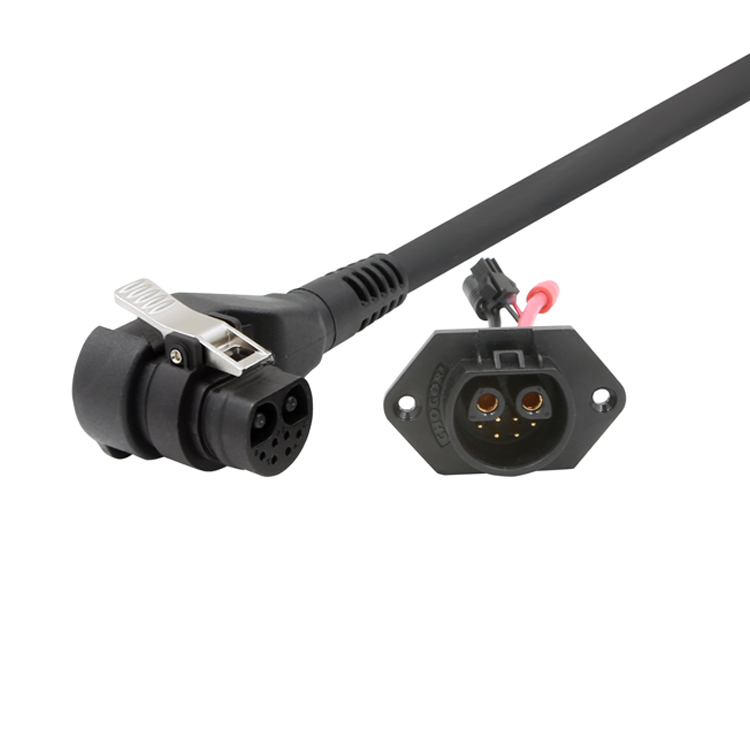

KR 2+6 Pin (50A+5A)
Applications: Hybrid Connector for Residential Energy Storage
Advantages
● IPXXB protection level
● There is a clicking prompt when locking
● Self-locking 3-point design, anti-vibration
● RoHS and REACH compliant
