| Mating Cycle: 3,000 Cycles |
Voltage Rating: 300V AC (Power)
100V AC (Signal) |
Operating Temperature: -40°C to 105°C |
| Pullout Force:<120N | Current Rating: 80A+5A | IP Rating: IPX7(Mated) |
|
Wire Processing: Solder (Signal) / Plug Side
Crimp (Power) / Panel Side |
Withstand Voltage: 1,500V AC | Salt Spray: 5% NaCI, 48h |
|
Wire Gauge: Power 6AWG/Max Signal 22AWG/Max |
Insulation Resistance: 500MΩ at 500V DC | Flammability Rating: UL94V-0 |
Industry Challenges | High-Current Connection in Confined Spaces
In step-through electric motorcycles, batteries are typically installed under the footboard, leaving very limited room for connector operation. Conventional high-current connectors commonly exhibit the following issues in this scenario:● Difficult disconnection
In tight spaces, fingers struggle to maintain a stable grip, and the angle of applied force is restricted, making it difficult to generate sufficient pull-out force.
● Unstable connection
During insertion, spatial and angular limitations often result in incomplete mating, repeated adjustments, or insecure connections.
● Poor user experience and potential safety risks
Unsmooth plugging and unplugging negatively impact user experience, while frequent handling may lead to loose contacts, overheating, or accidental contact hazards.

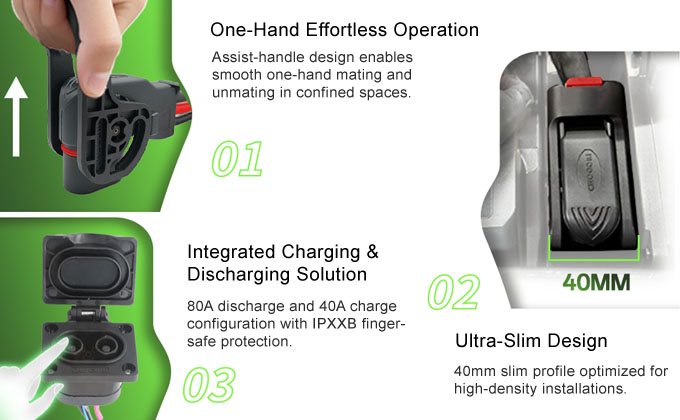

Core Advantages | LD80 Connector
● One-Hand Effortless Operation
Assist-handle design enables smooth one-hand mating and unmating in confined spaces.
● Ultra-Slim Design
40mm slim profile optimized for high-density installations.
● Integrated Charging & Discharging Solution
80A discharge and 40A charge configuration with IPXXB finger-safe protection.
Application Scope
Developed based on real pain points in the electric motorcycle market, the LD80 Assisted Connector is primarily intended for electric motorcycle applications.
Thanks to its effort-saving operation and compact structure, it is also well suited for use in robots / AGVs, portable energy storage systems / mobile power supplies, and selected industrial equipment.
Cooperation Case
Patents
The product has been granted relevant patents, supporting solution differentiation and long-term, stable application.
