| Mating Cycle: 500 Cycles | Voltage Rating: 125V | Operating Temperature: -40°C to 105°C |
| Wire Processing: Solder |
Current Rating: 3~4pin 10A 8pin,14pin 2A |
IP Rating: IP67&IP69 (Mated&Unmated) |
|
Wire Gauge: 3pin, 4pin 20~18AWG 8pin, 14pin 26~18AWG |
Pin Number: 3/4/8/14 Pin | Salt Spray: 5% NaCI, 48h |
|
|
|
Flammability Rating: UL94V-0 |

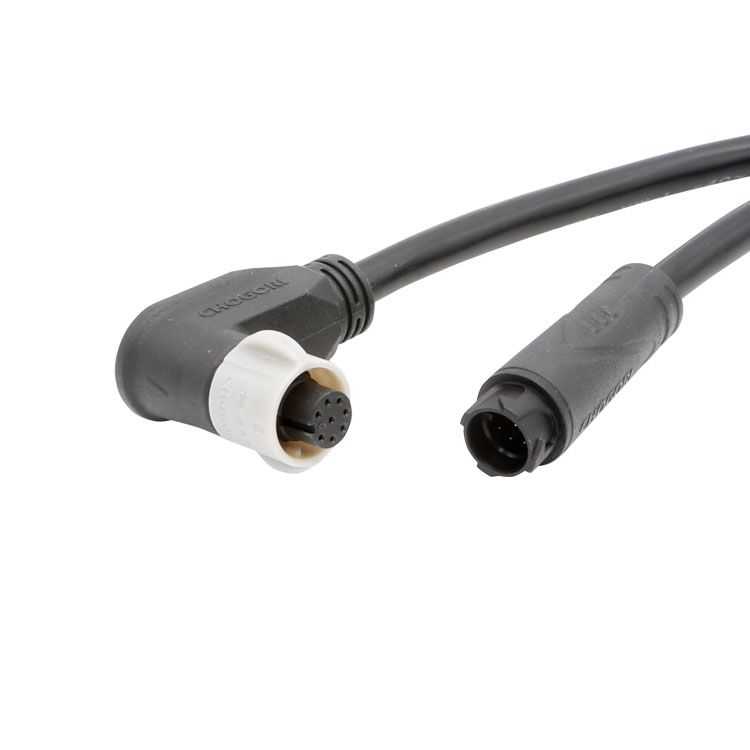

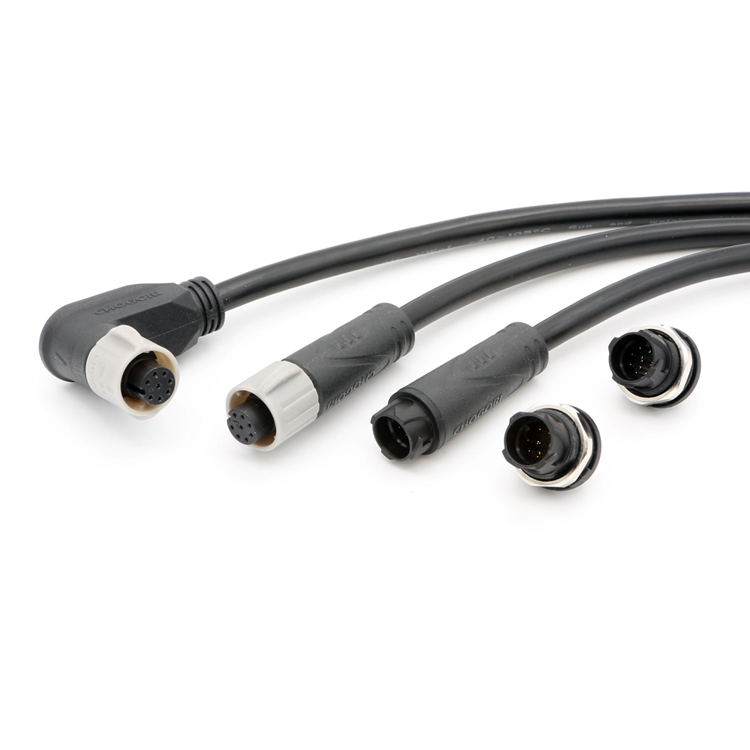

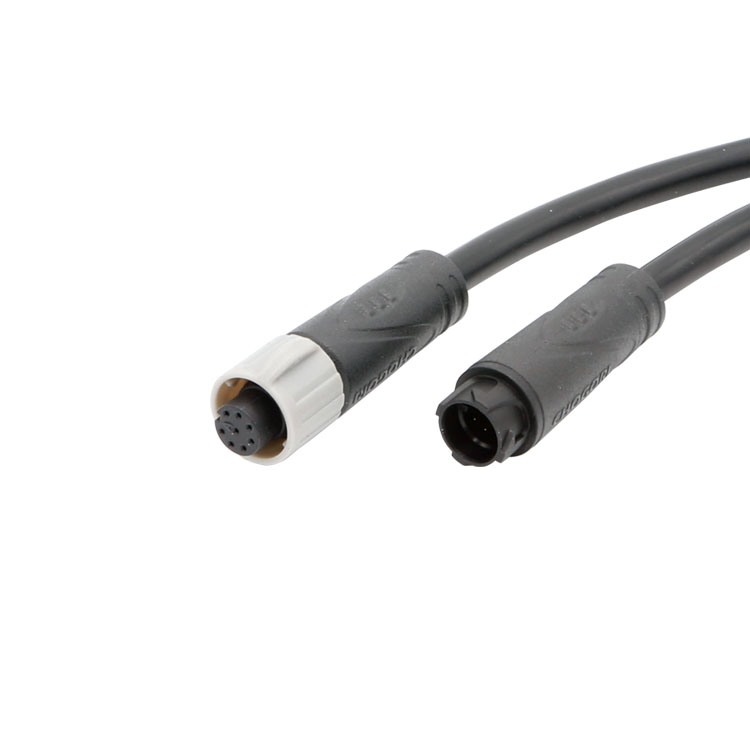

Compact Self-Locking Design for Space-Constrained Applications
The Omni Series features a compact self-locking structure, enabling efficient integration into devices with limited space while maintaining robust connection performance. It is an ideal solution for modern equipment requiring both miniaturization and reliability.
User-Friendly Operation with Dual-Wing Locking Ring
Equipped with an innovative dual-wing locking ring, the connector allows for quick and intuitive operation. Even in challenging installation environments—such as low visibility or with gloves—users can easily achieve secure mating and unmating.
4-Point Locking Mechanism for Enhanced Reliability
The upgraded 4-point locking system ensures a more secure and stable connection compared to traditional designs. It delivers superior resistance to vibration and mechanical stress, making it highly reliable in demanding conditions.
Dynamic Waterproofing with Optimized Lateral Sealing
The Omni Series incorporates an advanced dynamic waterproof design, featuring an optimized lateral sealing structure. This enhancement provides more stable and consistent sealing performance, ensuring long-term protection against water and environmental exposure.
Wide Range of Applications
The Omni Series is designed for versatility and is suitable for a broad spectrum of industries, including:● Fleet management systems
● LED lighting
● Energy storage systems
● Smart metering devices
● Industrial automation equipment
● Medical devices
