Mating Cycle：≥200 Cycles |
Voltage Rating：32V AC |
Operating Temperature：-25°C to 85°C |
|
Pullout Force：<100N |
Current Rating：15A + 2A |
IP Rating：IP67 Mated |
|
Wire Processing：Solder |
Withstand Voltage：650V AC |
Salt Spray：5% Nacl, 48H |
|
Wire Gauge：Power 16AWG/ Max |
Insulation Resistance：>100MΩ at DC 500V |
Flammability Rating：UL94V-0 (Plastic Material) |
Products

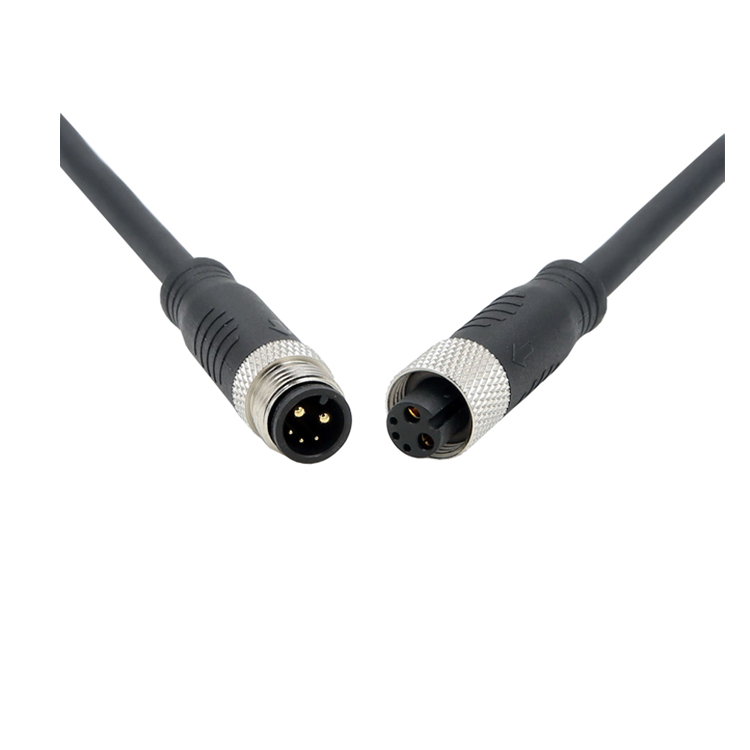

M12 2+3 Pin (15A)
Applications: For charging & discharging use, cable to panel solution
Advantages
• Metal nut reliable connection, smooth feeling
• Power and signal hybrid combination
• Overmold structure, clean and flexible
• RoHS and REACH compliant
