Voltage Rating：48V AC/60V DC |
Operating Temperature：-25°C to 80°C |
|
Current Rating：15A+2A |
IP Rating：IP67 |
|
Withstand Voltage：700V AC |
Mating Cycle：200 Times Min (Without load) |
|
Insulation Resistance：>20MΩ Min@500VDC |
Wire Gauge：16AWG/1.31mm² + 24AWG/0.2mm² |
Products

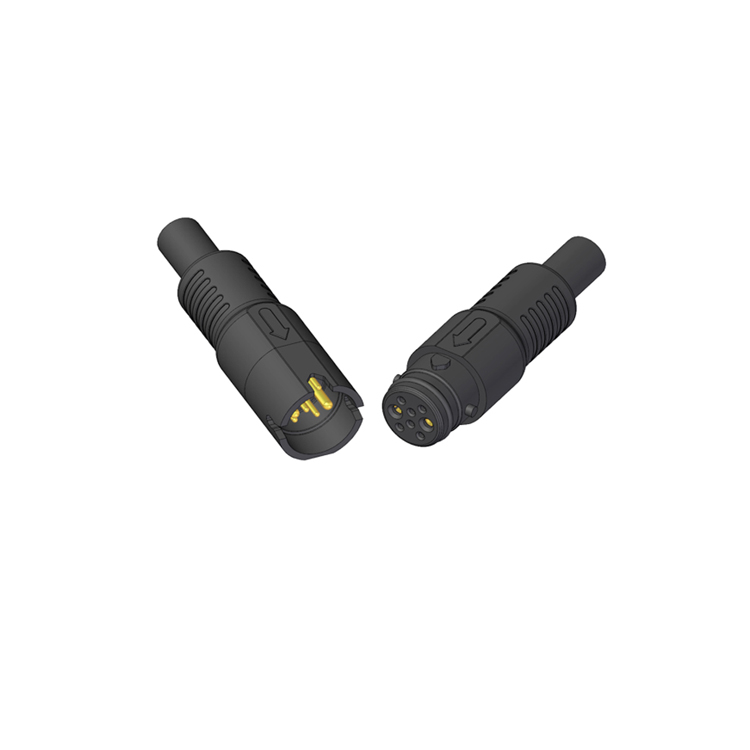

Dream 2+6 Pin (15A+2A)
Applications: For charging & discharging use, cable to panel solution
Advantages
• Lock with Latch
• Self-locking button to prevent accidental unlocking
• Up to 6 signal pins
• Audible click when lock engaged
• Countersunk panel mount solution with 90 degree cable out to reduce the overall height
• RoHS and Reach Compliant
