Mating Cycle：≥500 Cycles |
Voltage Rating：300V DC |
Operating Temperature：-40°C to 105°C |
|
Pullout Force：<100N |
Current Rating：20A |
IP Rating：IP67 Mated |
|
Wire Processing：Solder |
Withstand Voltage：2,000V AC |
Salt Spray：5% Nacl, 48H |
|
Wire Gauge：14AWG/ Max |
Insulation Resistance：>100MΩ at DC 500V |
Flammability Rating： UL94V-HB (Plastic Material) / Plug Side UL94V-0 (Plastic Material) / Panel Side |
Products

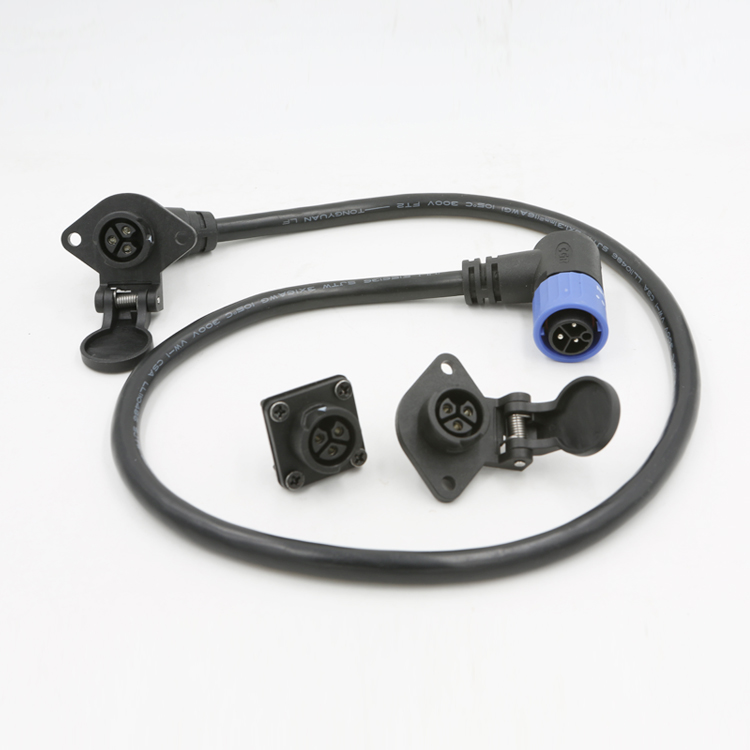

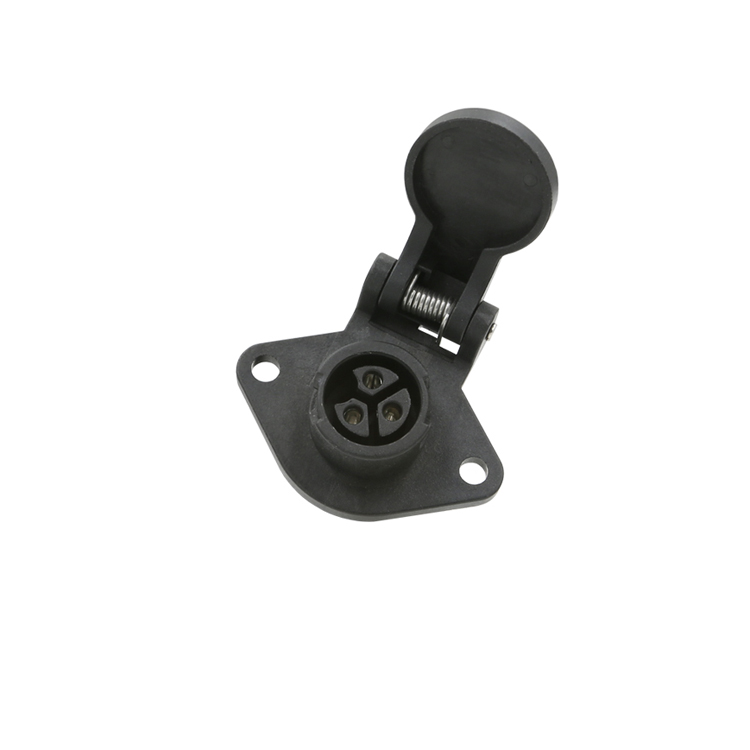

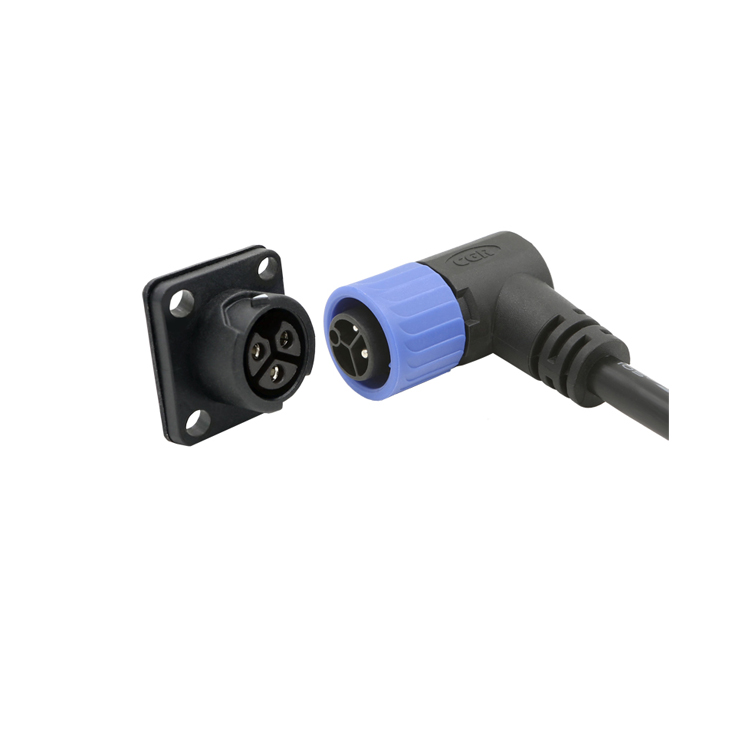

Middle 3 Pin (20A)
Applications: For charging & assembly type cable application
Advantages
• Push-lock mechanism
• Audible click when lock engaged
• RoHS and REACH compliant
