Mate60 2+1+5 Pin (60A+15A+5A)

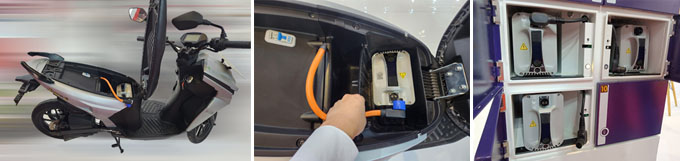

Applications: Charging & discharging application

Advantages
• Push-lock mechanism
• Locking nut with lever
• Audible click when lock engaged
• 3 dots design increase stable connection in vibrating environment
• Countersunk panel mount solution with 90 degree cable out to reduce the overall height
• RoHS and REACH compliant

SpecificationsRelated Products

Mating Cycle:≥5,000 Cycles

Voltage Rating:125V DC (Power)
                            80V DC (Signal)

Operating  Temperature:-40°C to 105°C

Pullout Force:<100N

Current Rating:60A+15A+5A

IP Rating:IP67 Mated Panel Side

Wire Processing:Crimp (Power), Solder (Signal)

Withstand Voltage:1,500V AC

Salt Spray:5% Nacl, 48H

Wire Gauge:Power 2 Pin 8AWG/ Max

                      Signal 1 Pin 16AWG/ Max

                      Signal 5 Pin 20AWG/ Max

Insulation Resistance:>100MΩ at DC 500V

Flammability Rating:UL94V-0 (Plastic Material)
