Mating Cycle：≥5,000 Cycles |
Voltage Rating：125V DC (Power) |
Operating Temperature：-40°C to 105°C |
|
Pullout Force：<100N |
Current Rating：60A+15A+5A |
IP Rating：IP67 Mated Panel Side |
|
Wire Processing：Crimp (Power), Solder (Signal) |
Withstand Voltage：1,500V AC |
Salt Spray：5% Nacl, 48H |
|
Wire Gauge：Power 2 Pin 8AWG/ Max Signal 1 Pin 16AWG/ Max Signal 5 Pin 20AWG/ Max |
Insulation Resistance：>100MΩ at DC 500V |
Flammability Rating：UL94V-0 (Plastic Material) |
Products

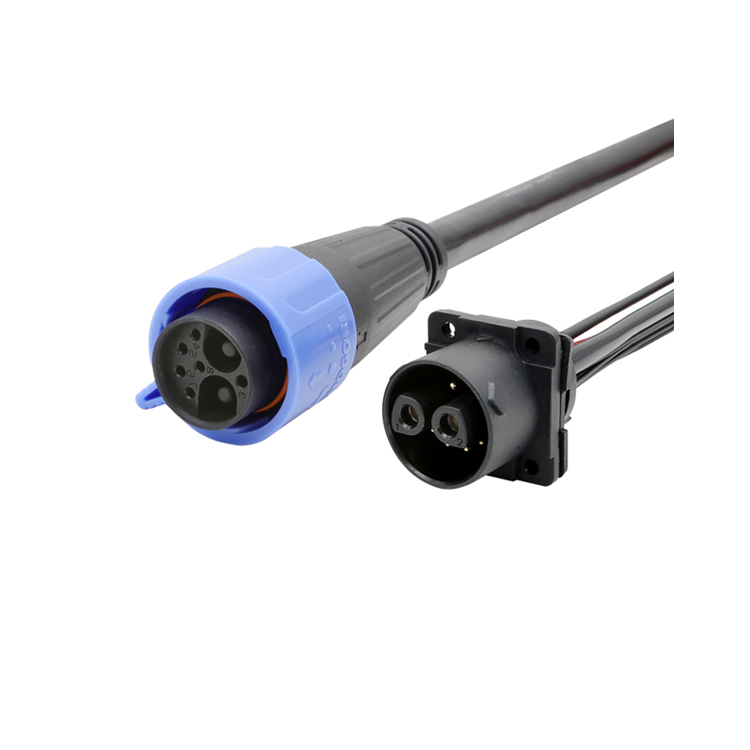

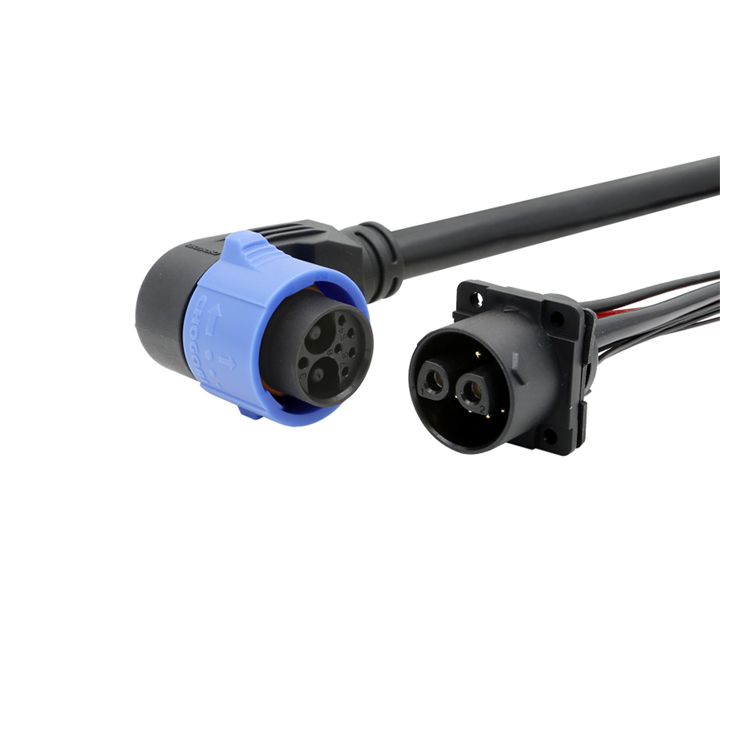

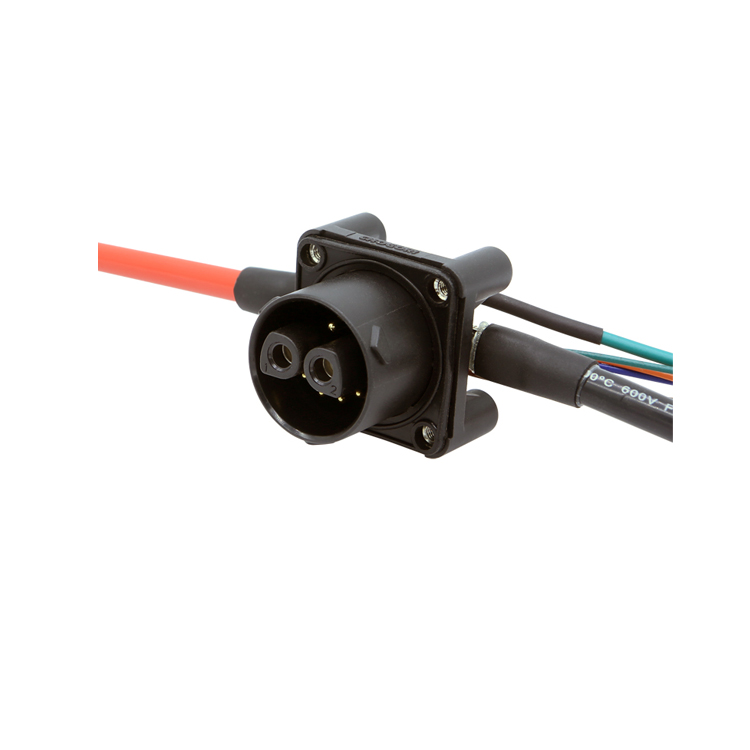

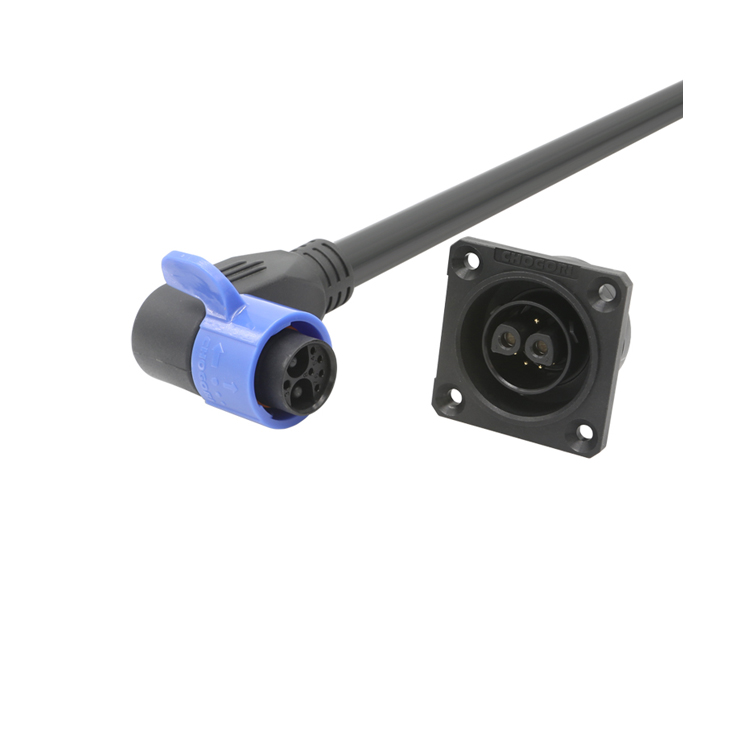

Mate60 2+1+5 Pin (60A+15A+5A)
Applications: Charging & discharging application
Advantages
• Push-lock mechanism
• Locking nut with lever
• Audible click when lock engaged
• 3 dots design increase stable connection in vibrating environment
• Countersunk panel mount solution with 90 degree cable out to reduce the overall height
• RoHS and REACH compliant
