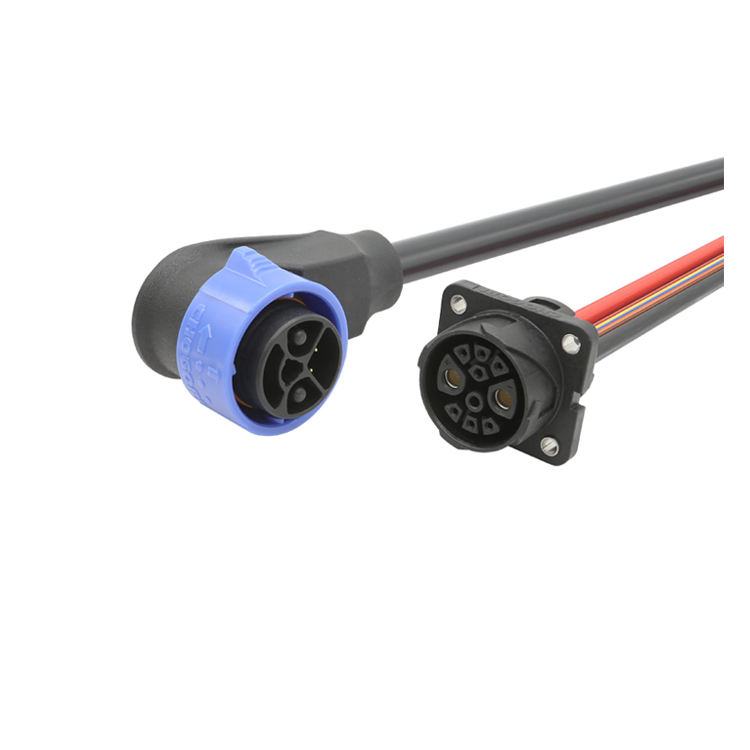

Bourbon80 2+8 Pin (90A+5A)

Applications: Charging & discharging application

Advantages

• Push-lock locking mechanism, plug in & out easy and smooth

• Locking nut with hand grip, easy access

• Safety, with finger touch proof, IPXXB protection level

• With audible click when locking engaged

• RoHS and REACH compliant

SpecificationsRelated Products

Mating Cycle: 3,000 CyclesVoltage Rating: 300V AC (Power)

                          100V AC (Signal)

Operating Temperature: -40°C to 105°C
Pullout Force:<120NCurrent Rating: 90A+5AIP Rating: IP67(Mated)
Wire Processing: Solder (Signal) / Plug Side

                            Crimp (Power) / Panel Side

Withstand Voltage: 2,000V AC (Power)
                               1,500V AC (Signal)
Salt Spray: 5% NaCI, 48h

Wire Gauge: Power 5AWG/Max

                     Signal 20AWG/Max

Insulation Resistance: 500MΩ at 500V DCFlammability Rating: UL94V-0
