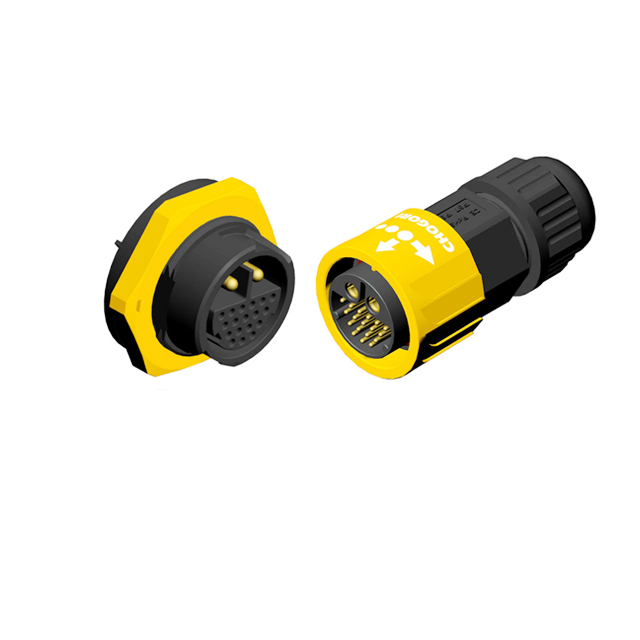

Large 2+18 Pin (20A+5A) Push Lock

Applications: Hybrid Connector for Residential Energy Storage

Advantages

• Easy installation with push lock mechanism

• Reliable connection with IP67 protection

• Hybrid interface supports power transmission and data signal

• Field installable and pre-overmold variants available

• RoHS and REACH compliant

SpecificationsRelated Products

Mating Cycle: 500 CyclesVoltage Rating: 300V+30VOperating Temperature: -40°C to 105°C
Wire Processing: SolderCurrent Rating: 20A+5AIP Rating: IP67(Mated)
Insulation Resistance: 100MΩ at 500V DCWithstand Voltage: 2,000V ACSalt Spray: 5% NaCI, 48h

Wire Gauge: Power 12AWG/ Max

                     Signal 22AWG/ Max


Flammability Rating: UL94V-0
