| Mating Cycle: 5,000 Cycles | Voltage Rating: 80V DC | Operating Temperature: -40°C to 105°C |
| Wire Processing: Panel, Crimp; Plug, Solder | Current Rating: 50A+5A | IP Rating: IPX7(Mated) |
| Insulation Resistance: 500MΩ at DC 500V | Withstand Voltage: 1,500V AC | Salt Spray: 5% NaCI, 48h |
Wire Gauge: Power 9AWG/ Max Signal 20AWG/ Max | Flammability Rating: UL94V-0 |
Products

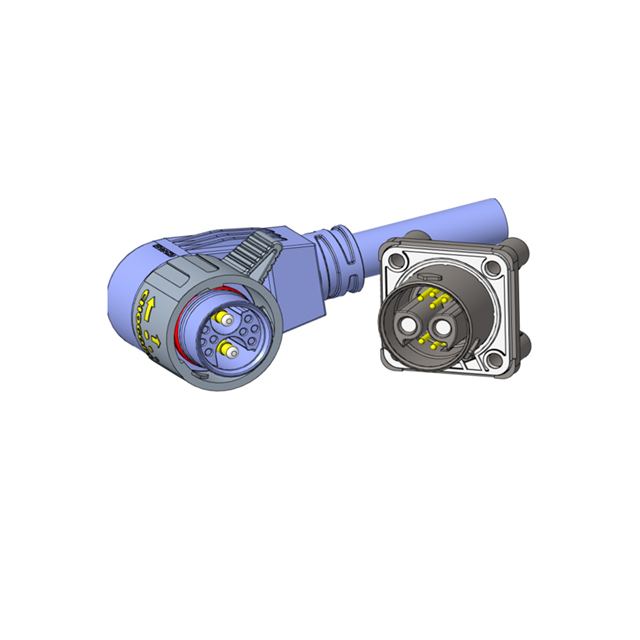

Mate 2+8 Pin（50A+5A）
Applications: Hybrid Connector for Residential & Portable Energy Storage
Advantages
• Easy installation with push lock mechanism
• Locking nut with hand grip for easy access
• Reliable connection with IP67 protection
• Hybrid interface supports power transmission and data signal
• Pre-overmold with right angle version available
• RoHS and REACH compliant
• IPXXB for Finger-touch Protection
