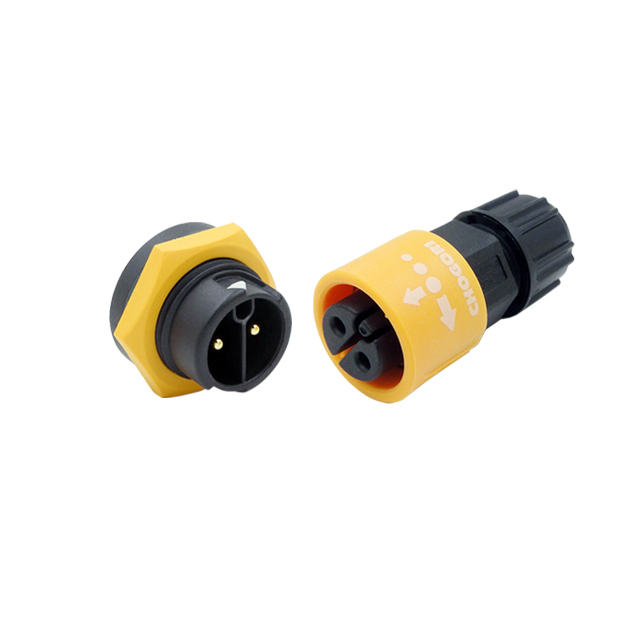

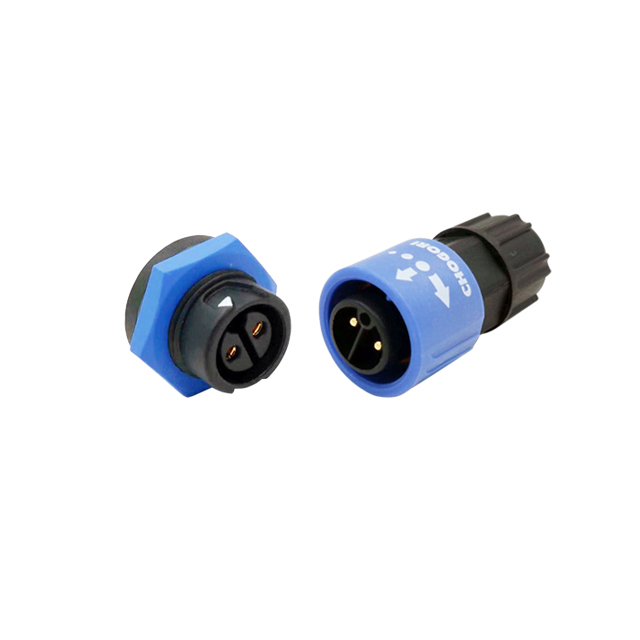

Middle 2 Pin (20A) Push Lock

Applications: Power Connectors for Solar Street Light

Advantages

• Easy installation with push lock mechanism

• Reliable connection with IP67 protection

• Field installable and pre-overmold variants available

• UL Certified

• RoHS and REACH compliant

SpecificationsRelated Products

Mating Cycle: 500 CyclesVoltage Rating: 300VOperating Temperature: -40°C to 105°C
Wire Processing: SolderCurrent Rating: 20AIP Rating: IP67(Mated)
Insulation Resistance: 100MΩ at 500V DCWithstand Voltage: 2,000V ACSalt Spray: 5% NaCI, 48h

Wire Gauge: 14~12AWG


Flammability Rating: UL94V-0
