| Mating Cycle: 500 Cycles | Voltage Rating: 125V | Operating Temperature: -40°C to 105°C |
| Wire Processing: Solder | Current Rating: 5A | IP Rating: IP67(Mated) |
| Insulation Resistance: 100MΩ at 500V DC | Withstand Voltage: 2,000V AC | Salt Spray: 5% NaCI, 48h |
Wire Gauge: 14~12AWG | Flammability Rating: UL94V-0 |
Products

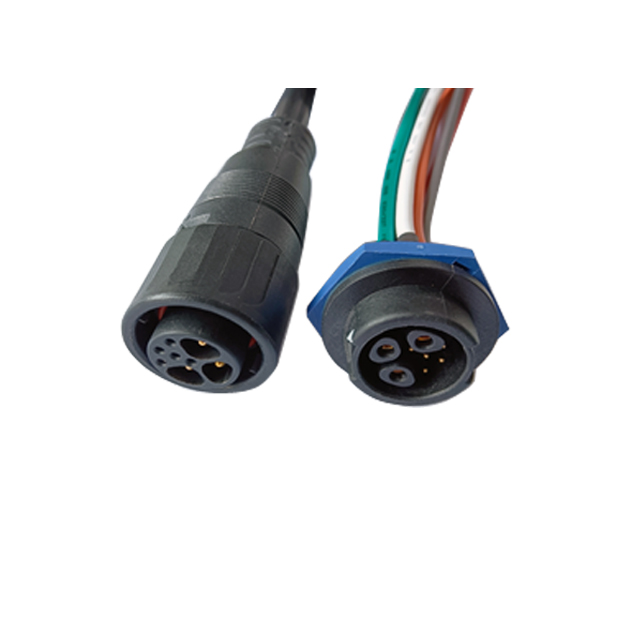

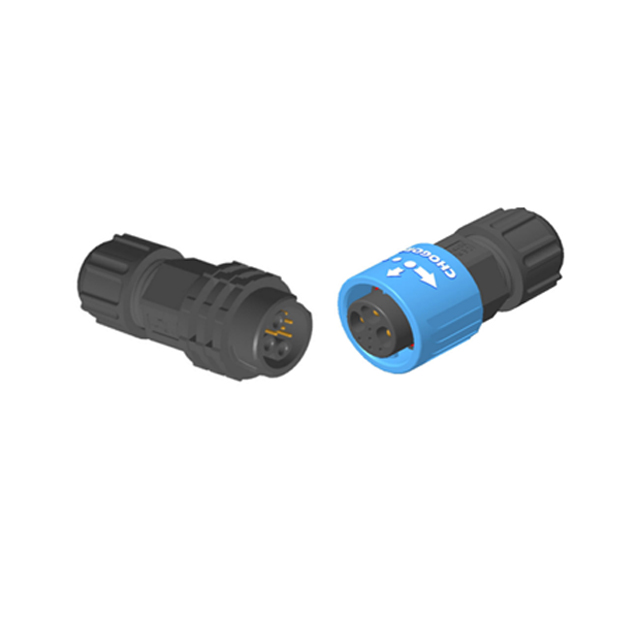

Middle 5 Pin (5A) Screw
Applications: Signal Connectors for Solar Tracker
Advantages
• Secure screw lock mechanism with high mechanical strength
• Reliable connection with IP67/IP68 protection
• Field installable and pre-overmold variants available
• UL Certified
• RoHS and REACH compliant
