Mating Cycle：≥2,000 Cycles | Voltage Rating：600V | Operating Temperature：-40°C to 105°C |
Pullout Force：<100N | Current Rating：50A | IP Rating：IP67 Mated |
Wire Processing：Solder | Withstand Voltage：2,500V AC | Salt Spray：5% Nacl, 48H |
Wire Gauge：9AWG/Max | Insulation Resistance：>100MΩ | Flammability Rating：UL94V-0 |
Products

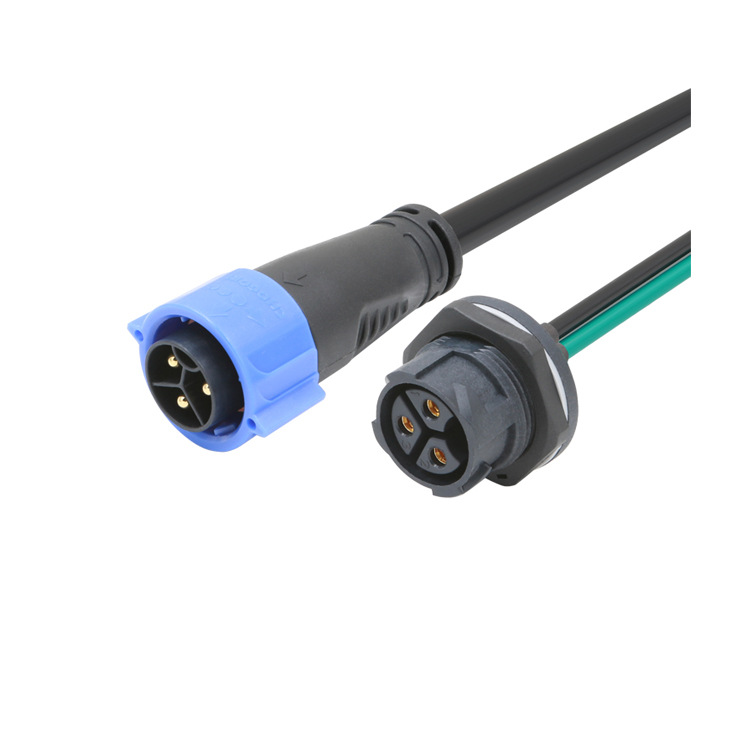

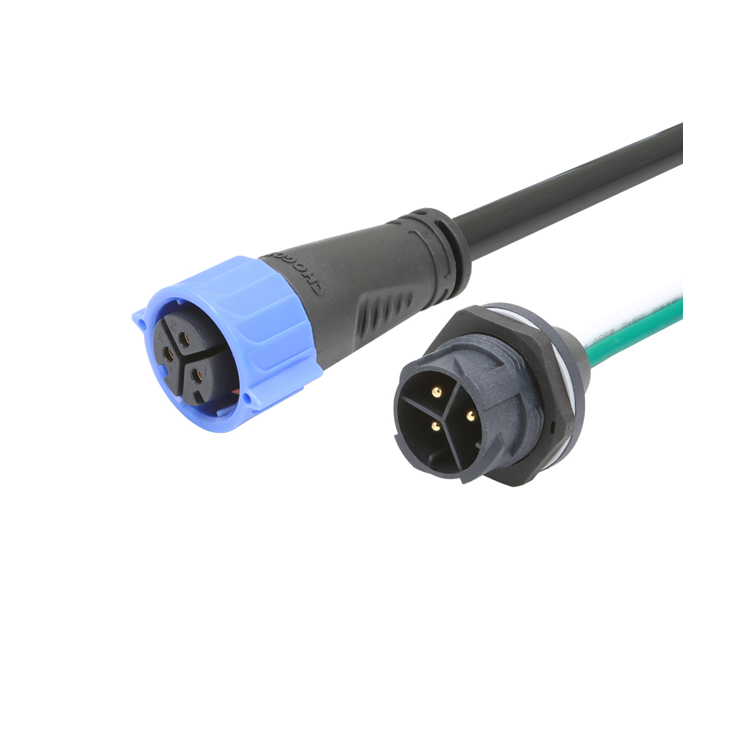

Large 3 Pin (50A)
Applications: Charging & discharging application
Advantages
• Four key push lock mechanism
• Audible click when lock engaged
• One-piece plug injection molding
• Partition wall between the terminals for voltage applications
• RoHS and REACH compliant
• UL2238
