| Mating Cycle: 100 Cycles | Voltage Rating: 1000V+24V | Operating Temperature: -40°C to 105°C |
| Wire Processing: Crimp | Current Rating: 70A+3A | IP Rating: IPX6(Mated) |
| Insulation Resistance: 200MΩ at 500V DC | Withstand Voltage: 4250V AC（Power） 500V AC（Signal） | Salt Spray: 5% NaCI, 72h |
Wire Gauge: Power 8AWG/ Max Signal 22AWG/ Max | Flammability Rating: UL94V-0 |
Products

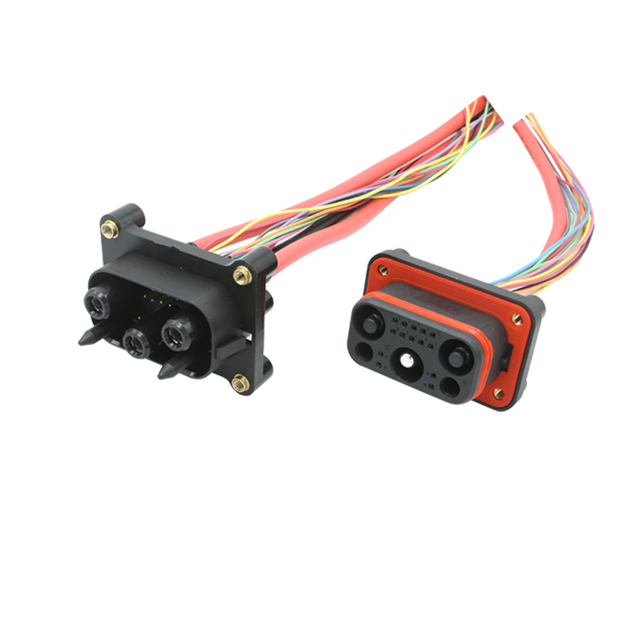

FC31 3+14 Pin (70A+3A）
Applications: Hybrid Connector for Residential Energy Storage
Advantages
• Easy guided installation with safty connection
• Hybrid interface supports power transmission and data signal
• IPX6 protection suitable for use in humid environment
• UL4128 & UL2238 Certified
• RoHS and REACH complian
